VC720S NON-METALLIC CHAIN
WE ARE CONNEXUS
Non-Metallic Collector Chain
Collector chain for primary and secondary clarifiers
VC720NM Non Metallic Collector Chain
Chain Specification
- Chain manufactured of glass filled nylon 6/6 material
- 6” pitch
- Average weight of 1.4 lbs/ft
- Catalogue working load of 3,100 lbs based upon strength, fatigue and wear considerations
- Average ultimate strength of over 7,000 lbs
- Chain to be assembled using a 0.875” pin
- Pin is locked into the sidebar, to prevent pin rotation, using a clip made of the same material as the chain
- No special assembly tools are required
- 6” pitch
- Average weight of 1.4 lbs/ft
- Catalogue working load of 3,100 lbs based upon strength, fatigue and wear considerations
- Average ultimate strength of over 7,000 lbs
- Chain to be assembled using a 0.875” pin
- Pin is locked into the sidebar, to prevent pin rotation, using a clip made of the same material as the chain
- No special assembly tools are required
Attachments Available

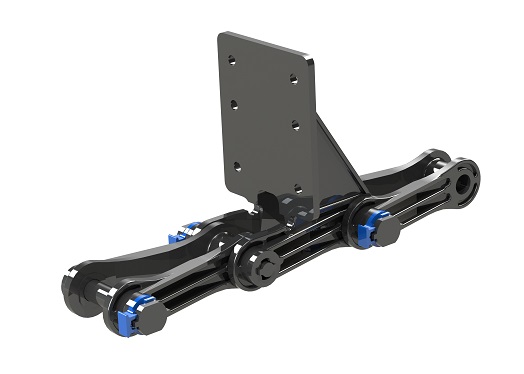

F226 and F228
Applications
Collector chain for primary and secondary clarifiers.
Benefits
VC720S Non-Metallic Chain is lightweight and designed for easy installation. Chain is compatible with other chain manufacturer’s non-metallic sprockets and components. No special tools are required for chain assembly.
Additional equipment available for rectangular clarifiers, bar screens and grit collectors;
Additional equipment available for rectangular clarifiers, bar screens and grit collectors;
- Other Chain and AttachmentsDrive Chain
- Sprockets
- Bearings
- Flights
- Filler Blocks
- Wear Materials
- Hardware
